Ball Mill

Introduction: Ball mill is the key machine to grind the crushed materials.Ling Heng Machinery produces the following ball mills: Ball Mill, Gold Ore Ball Mill Machine, Aluminum Ash Ball Mill Machine, Conical Ball Mill,Ceramics Ball Mill, Chinaware Ball Mill, etc.

Whatsapp : +86 13223066055
We are here to help: Easy ways to get the answers you need.
  • Photo
  • video

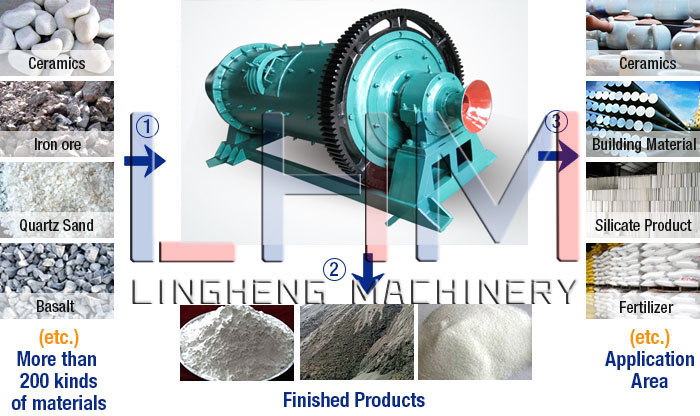

Ball mill is the key machine to grind the crushed materials. Ball mill machine is widely used to process cement, silicate product, building material, refractory material, fertilizer, ceramics and glass, etc.The ball mill, also called rod mill, can work in a dry way or a wet way. You decide the working way of small ball mill machine according to your material and discharging way.

The Description of Ball Mill

Working site of wet type ball mill

The work of wet type ball mill needs water, adding water during the grinding work, and it is mainly used in ore dressing line. Wet type ball mill can grind ores into pulp, and then the pulp can be separated by magnetic separators or flotation cells.

Working site of wet type ball mill

According to the difference of raw materials, Ling Heng Machinery produces the following ball mills: gold ore ball mill machine, manganese ore ball mill machine, nickle ore ball mill machine, tin ore ball mill machine, copper ore ball mill machine, garnet ball mill machine, andalusite ball mill machine, aluminum ash ball mill machine, molybdenum ball mill machine and fluorite ball mill machine.

Ball Mill of difference raw materials

Since people have different demands toward ball mill like structure, technology and working way, Ling Heng Machinery produces the following kinds: overflow ball mill, high-efficient and energy-conserving ball mill, tube mill, wet ball mill, intermittent ball mill, cement ball mill, ceramic ball mill and cone ball mill, etc.

Ball mill of different structure, technology and working way

Cone ball mill/Conical Ball Mill

Cone ball mill is a common type of ball mill used in ore beneficiation production. This machine changes the traditional structure of the grinding mill and the machine frame and the chassis is integrated, so that when installing it, it can be placed on a flat foundation for one time. The main bearing adopts double-row radial spherical roller bearing which can reduce the energy consumption by 30% and improve the granularity and processing capacity by 15%-20%.

Cone ball mill, Conical Ball Mill

Ceramics ball mill/Chinaware Ball Mill

Chinaware ball mill is a set of ball mill that made up of chinaware. Its capacity is very small. So it is generally used in test room for small scale production. It is a new type energy saving ball mill which is designed by domestic mining machinery specialists with latest milling technology.

Ceramics ball mill, Chinaware Ball Mill

Technical data of ball mill

Model Shell rotation speed (r/min) Ball load (t) Feeding size (mm) Discharging size (mm) Capacity (t/h) Power (kw) Weight (t)
ø900*1800 36-38 1.5 <=20 0.075-0.89 0.65-2 18.5 4.6
ø900*3000 36 2.7 <=20 0.075-0.89 1.1-3.5 22 5.6
ø1200*2400 36 3 <=25 0.075-0.6 1.5-4.8 30 12
ø1200*3000 36 3.5 <=25 0.074-0.4 1.6-5 37 12.8
ø1200*4500 32.4 5 <=25 0.074-0.4 1.6-5.8 55 13.8
ø1500*3000 29.7 7.5 <=25 0.074-0.4 2-5 75 15.6
ø1500*4500 27 11 <=25 0.074-0.4 3-6 90 21
ø1500*5700 28 12 <=25 0.074-0.4 3.5-6 130 24.7
ø1830*3000 25.4 11 <=25 0.074-0.4 4-10 130 28
ø1830*4500 25.4 15 <=25 0.074-0.4 4.5-12 155 32
ø1830*6400 24.1 21 <=25 0.074-0.4 6.5-15 210 34
ø1830*7000 24.1 23 <=25 0.074-0.4 7.5-17 245 36
ø2100*3000 23.7 15 <=25 0.074-0.4 6.5-36 210 34
ø2100*4500 23.7 24 <=25 0.074-0.4 8-43 245 42
ø2100*7000 23.7 26 <=25 0.074-0.4 8-48 280 50
ø2200*4500 21.5 27 <=25 0.074-0.4 9-45 280 48.5
ø2200*6500 21.7 35 <=25 0.074-0.4 14-26 370 52.8
ø2200*7000 21.7 35 <=25 0.074-0.4 15-28 380 54
ø2200*7500 21.7 35 <=25 0.074-0.4 15-30 380 56
ø2400*4500 21 30 <=25 0.074-0.4 8.5-60 320 65
ø2700*4000 20.7 40 <=25 0.074-0.4 12-80 400 94
ø2700*4500 20.7 48 <=25 0.074-0.4 12-90 430 102
ø3200*4500 18 65 <=25 0.074-0.4 Upon the process 800 137

Ling Heng machinery has ball mill for sale. As an experienced ball mill manufacturer, Ling Heng Machinery develops a new type ball mill equipment with high efficiency and energy consumption, which has high quality and low price with the same quality. If you want to know the specific quotation of the machine, you can chat with us online or write emails to us!
