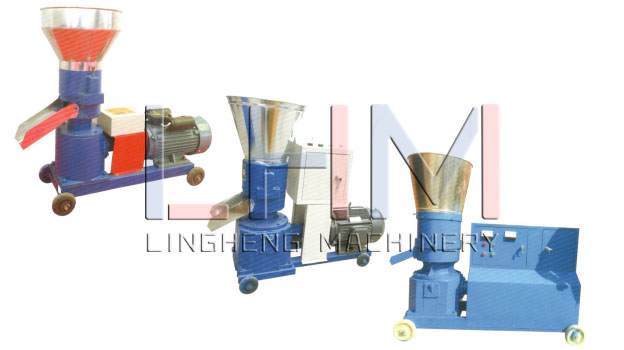

Introduction: Flat die electric small poultry feed mill can produce livestock and poultry feed. It is one of the most important part of feed production line.It takes corn, barley, wheat, maize,cereal, grain, coarse fiber,grass as input and feed as output.It is an excellent machine for animal feed manufactures.Animal feed pellet machine for chicken, duck, rabbit, pig, cattle, goat & sheep, fish,shrimp, etc.
Flat Die Pellet Machine can produce livestock and poultry feed. It is one of the most important part of feed production line.It takes corn, barley, wheat, maize,cereal, grain, coarse fiber,grass as input and feed as output.It is an excellent machine for animal feed manufactures.
Animal feed pellet machine for chicken, duck, rabbit, pig, cattle, goat & sheep, fish,shrimp, etc. sawdust pellet machine, biomass pellet machine, charcoal powder pellet machine.
FEED PELLET MACHINE
1. Lingheng feed pellet machine is mainly used in rabbit farming, fish, duck, chicken, shrimp, pig, cattle, sheep and industrial granule processing.
2. Corn could be directly added without pulverization. The grain feed pressed by Lingheng Pellet Machine with smooth surface and a moderate hardness.
3. Low temperature during processing, could keep the nutrients inside the raw material well.
4. With a low water content of the pellet, it is convenient to store.
TECHNICAL PARAMETER OF PELLET MACHINE
| Model | Motor/kw | Capacity(kg/h) | Weight/kg | Dimension/cm |
| LH-125B | 3-4 | 80-100 | 45 | 63*27*75 |
| LH-150B | 3-4 | 90-150 | 55 | 65*27*78 |
| LH-210B | 7.5 | 200-300 | 90-110 | 85*38*91 |
| LH-230B | 11 | 300-400 | 110-150 | 98*38*94 |
| LH-260B | 15 | 400-500 | 160-190 | 108*42*104 |
| LH-300B | 18.5 | 600-800 | 280-320 | 130*51*121 |
| LH-360B | 22 | 700-900 | 330-380 | 140*56*160 |
| LH-400B | 30 | 900-1200 | 380-460 | 150*61*180 |
| LH-500B | 37-42 | 1200-1600 | 800 | 192*91*184 |
SAWDUST PELLET MACHINE
1. Application: sawdust,straw, husk,bamboo sawdust,peanut shell,sugarcane bagasse,alfalfa, etc.
2. Different raw material have different compression ration,customer could choose different mould.
3. The die could be use in both side, increase the life time of the die.
4. Steel structure and quality reducer, easy operation,low voice.
TECHNICAL PARAMETER OF SAWDUST PELLET MACHINE
| Model | Motor/kw | Capacity(kg/h) | Weight/kg | Dimension/cm |
| LH-R 200A | 15 | 80-120 | 320/350 | 1460*950*1100 |
| LH-R 200B | 7.5kw, 3phase | 80-120 | 215/245 | 1050*450*900 |
| LH-R 200P | >=15 | 80-120 | 150/170 | 1000*540*1050 |
| LH-R 300A | 41 | 250-350 | 850/890 | 2300*800*1450 |
| LH-R 300B | 22kw, 3phase | 250-350 | 540/575 | 1350*750*1300 |
| LH-R 300P | >=41 | 250-350 | 370/400 | 1200*640*1400 |
| LH-R 400A | 55 | 350-450 | 1010/1050 | 2400*850*1450 |
| LH-R 400B | 30kw, 3phase | 350-450 | 890/940 | 1400*800*1350 |
| LH-R 400P | >=55 | 340-450 | 560/585 | 1400*700*1450 |
| LH-R 550B | 55 | 500-1000 | 2000 | 2300*750*1850 |
DIESEL ENGINE PELLET MACHINE
PRODUCTION LINE OF PELLET MACHINE
1. The production line consist of crusher+mixer+screw hopper+pellet machine+cooler & storage bin.
2. Semi-auto production line, low investment, quick returns,easy operation and maintaining.
3. Worker need: 1-2
4. Capacity : Max: 3t/h
Finished Pellets
Video of pellet machine:
M125: https://youtu.be/4R4t9Z-JkNM
M300: https://youtu.be/4rVmwgmDDMk
M400: https://youtu.be/pZKKXqS_LE8
Cooling storage machine: https://youtu.be/muubkn8Fm-4
Catalog of pellet machine: https://linghengmachinery.files.wordpress.com/2018/04/2018-ling-heng-group-flat-die-pellet-machine.pdf
