Ring Die Pellet Machine

Introduction: Ring Die Pellet Machine (also known as: ring die wood pellet mill), can directly suppress crushed corn, crushed soybean meal, crushed straw, crushed rice husks and other crushed materials into pellet feed. Ring die pellet mill is a kind of feed granulator equipment.

Whatsapp : +86 13223066055
We are here to help: Easy ways to get the answers you need.
  • Photo
  • video

Ring Die Pellet Machine (also known as: ring die wood pellet mill), can directly suppress crushed corn, crushed soybean meal, crushed straw, crushed rice husks and other crushed materials into pellet feed. Ring die pellet mill is a kind of feed granulator equipment.

Our ring die wood pellet mill adopts the advanced mechanical forced-style feeding and high speed spiral centrifugal distributing system in the pelletizing room which can change the working pressure through the two screws of the centrifugal wheels in the middle of the pinch rollers. There are two pressure adjusting methods: hand rotation adjustment and automatic hydraulic one.

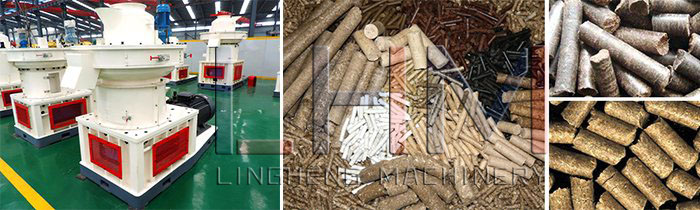

Ring Die Pellet Machine

Application Range of Ring Die Wood Pellet Mill

1.Our ring die pellet machine is mainly used to pelletize crude fiber materials like all kinds of agricultural crop straws and agricultural wastes.

2.The biomass fuel made by the ring die pellet mill is popularly used as the civil heat and energy in the countryside, town, factory and household because of its safe and green features.

3.The finished fuel products made by our pellet mill own small size and high density, which makes them the ideal fuel for the biomass power station, potter baking factory, bricks and tiles plant and metallurgy and chemical engineering plant etc.

4.Ling Heng ring die pellet mill is regarded as the perfect pressing and pelletizing equipment by the wood processing factory, fuel plant, fertilizer factory and chemical plant because of low investment cost, obvious effect and zero risk.

Structure Characteristics of Fote Ring Die Wood Pellet Mill

1. Die static, rollers rotating, materials centrifugally, evenly distributed around;

2. Double-layer dies, up and down dual use, high capacity and energy saving;

3. Ring die design is conducive to the pelletizing room cooling;

4. Independent lubrication system, bring precise and automatic lubrication to bearings;

5. Feeding system is equipped with inverters which can bring constant adjustable feeding speed.

Ring Die Wood Pellet Machine

Ring Die Pellet Mill Working Principle

Ring die pellet mill uses the two screws on the eccentric gear in the middle of pinch roller to adjust the pressure; while flat die pellet mill uses screw thread center regulating mechanism to adjust the pressure, with jacking force of hundreds of tons, steady falling, gentle striking and even pressure. Rotation manual and automatic hydraulic adjusting modes can be used.

From the contrast between flat die pellet mill and ring die pellet mill, we can see that the pressure of flat die pellet mill is higher than ring die pellet mill, so flat die pellet mill is better for material like wood chips, straw and other materials with light weight and difficult in forming.

Technical Parameter of Ring Die Wood Pellet Mill

Model SZLH25 SZLH32 SZLH35 SZLH40 SZLH42 SZLH508
Main motor power(kw) 22 37 55 90 110 160
Conditioner power(kw) 1.5 2.2 2.2 3 5.5 7.5
Output(t/h) 1-2 2-4 2-6 3-8 4-12 4-18
Diameter of circular mould(mm) 250 320 350 400 420 508
Feeder motor power(kw) 0.75 1.5 1.5 1.5 1.5 202
Particle specification(mm) 1.5-12 1.5-12 1.5-12 1.5-1.8 1.5-18 1.5-18
